MLX90393 Triple-axis Magnetometer

The mlx90393 sensor platform allows you to use your MLX90393 (datasheet, Adafruit) three axis magnetometer with ESPHome. The I²C is required to be set up in your configuration for this sensor to work.

../../_images/mlx90393-full.jpg

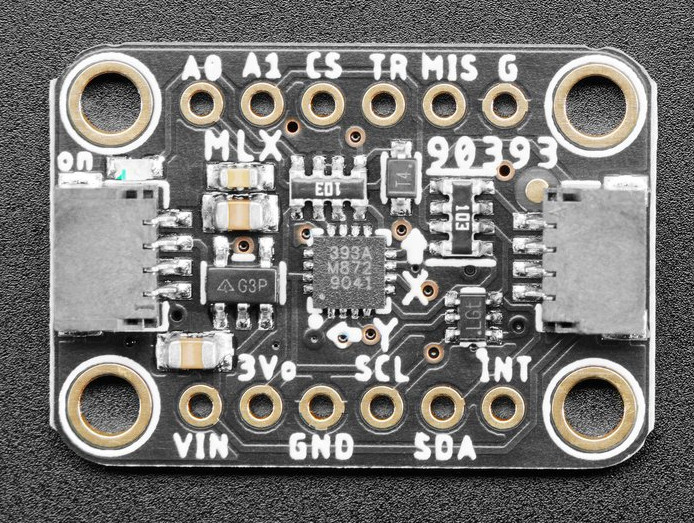

MLX90393 Triple-axis Magnetometer

# Example configuration entry
sensor:
  - platform: mlx90393
    id: mlx
    x_axis:
      name: "x"
    y_axis:
      name: "y"
    z_axis:
      name: "z"

Configuration variables:

  • x_axis (Optional): The information for the x-axis.

    • resolution (Optional, int): Set resolution. Defaults to 19BIT. Must be one of:

      • 16BIT

      • 17BIT

      • 18BIT

      • 19BIT

    • All other options from Sensor.

  • y_axis (Optional): The information for the y-axis.

    • resolution (Optional, int): Set resolution. Defaults to 19BIT. Must be one of:

      • 16BIT

      • 17BIT

      • 18BIT

      • 19BIT

    • All other options from Sensor.

  • z_axis (Optional): The information for the z-axis.

    • resolution (Optional, int): Set resolution. Defaults to 16BIT. Must be one of:

      • 16BIT

      • 17BIT

      • 18BIT

      • 19BIT

    • All other options from Sensor.

  • temperature (Optional): Built-in temperature sensor.

    • oversampling (Optional, int): On-chip oversampling for the temperature sensor. Defaults to 0. Must be between 0 and 3.

    • All other options from Sensor.

  • drdy_pin (Optional, Pin Schema): Data-ready pin. Often labelled INT. Using this pin might lead to slightly quicker read times.

  • gain (Optional, int): Specify the gain. Defaults to 2_5X. Must be one of

    • 1X

    • 1_33X

    • 1_67X

    • 2X

    • 2_5X

    • 3X

    • 4X

    • 5X

  • oversampling (Optional, int): On-chip oversampling. Defaults to 2. Must be between 0 and 3.

  • filter (Optional, int): On-chip digital filter. Defaults to 6. Must be between 0 and 7.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

  • address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x0C.

  • i2c_id (Optional, ID): Manually specify the ID of the I²C Component if you want to use multiple I²C buses.
